Car diagnostic pressure transducer

Description

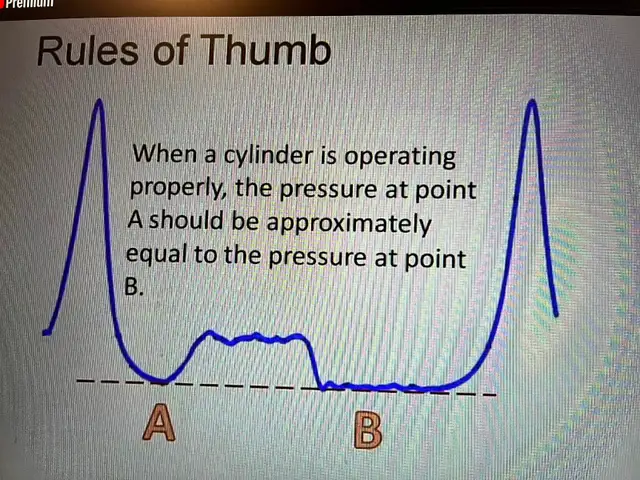

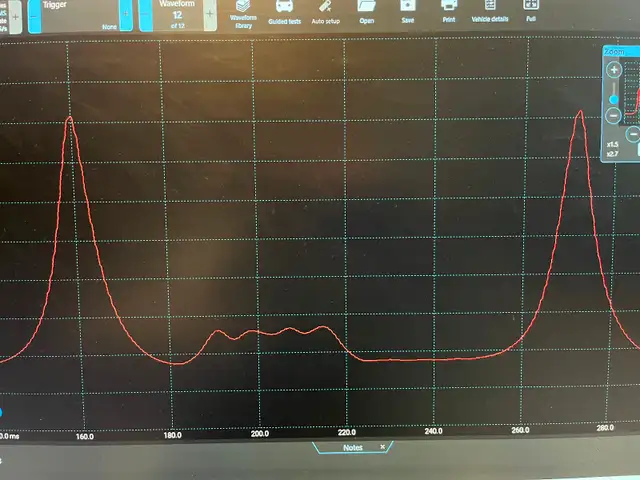

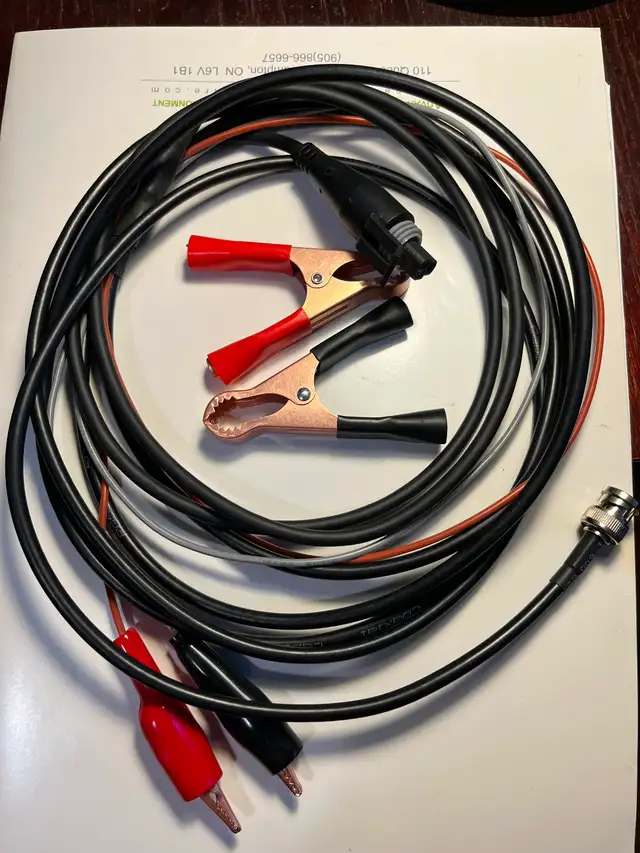

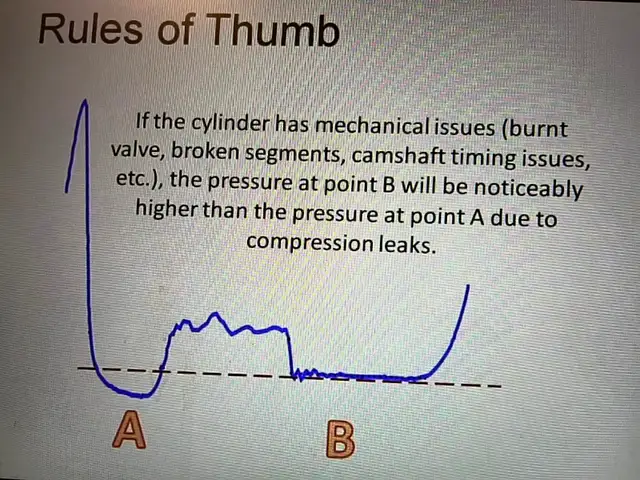

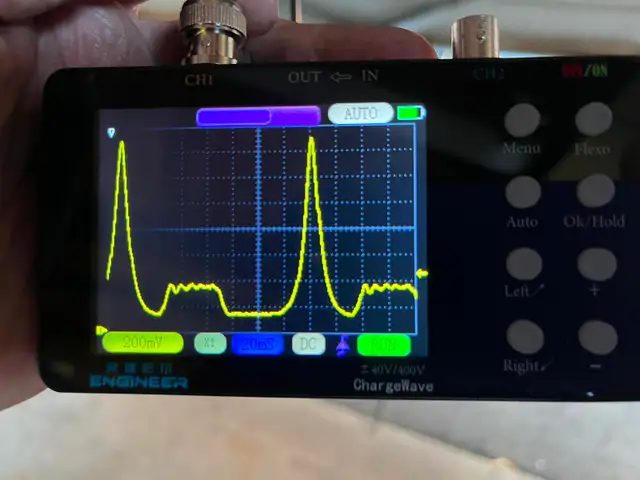

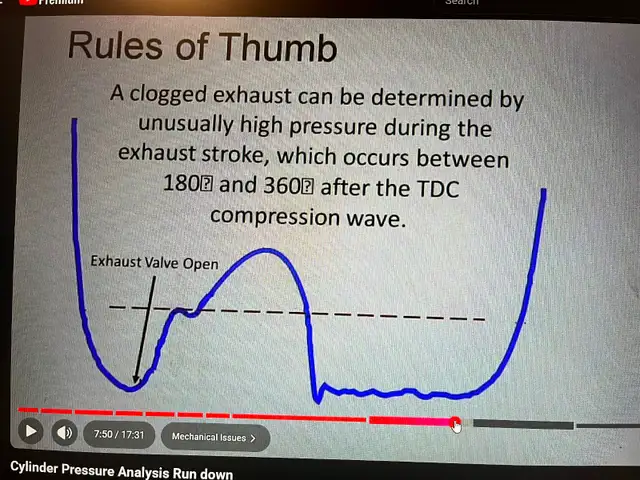

Diagnostic tool for car mechanics and automotive students work with oscilloscopes. Long 2.5 m cable with BNC connector. Supply by car batt 12 V. Specs -1.0 to 15.0 [Bar] .This transducer was made by Shanghai Electronics Technology Co. special for automotive application. Example of pictures made by PICO #3 and budget friendly #4 oscilloscope, show how it works . You can diagnosis timing, valves open and close time, valves burnt or broken , VCT operation , clogged exhaust, etc. Interpretation of display from You Tube pictures #5, #6, #7.
